Storage Configuration

SetGet uses S3-compatible object storage for all file operations — user uploads, attachments on work items, profile images, workspace logos, page assets, and exported data. The Storage Configuration page in the Admin Panel lets you connect, test, and monitor your storage backend.

Navigate to Admin Panel > Storage or go directly to /backoffice/settings/storage.

Storage architecture

SetGet uses a two-bucket model to separate publicly accessible assets from private files:

Bucket	Purpose	Access
setget-public	Profile images, workspace logos, public assets	Publicly readable, write via API only
setget-private	Attachments, exports, private uploads	Authenticated access only (presigned URLs)

How uploads work

SetGet uses a two-phase upload process:

1. Phase 1 — Presigned POST: The frontend requests a presigned upload URL from the API. The API generates a time-limited presigned POST URL and returns it to the frontend.
2. Phase 2 — Direct upload + confirm: The frontend uploads the file directly to the storage backend using the presigned URL, then calls the API to confirm the upload. The API validates the upload and stores the file reference in MongoDB.

This approach keeps large file payloads off the API server and enables efficient parallel uploads.

Configuration fields

Field	Description	Required	Environment Variable
Storage Endpoint	URL of the MinIO or S3 endpoint	Yes	SETGET_STORAGE_ENDPOINT
Access Key	Storage access key ID	Yes	SETGET_STORAGE_ACCESS_KEY
Secret Key	Storage secret key	Yes	SETGET_STORAGE_SECRET_KEY
Public Bucket	Bucket name for public assets	Yes	SETGET_STORAGE_PUBLIC_BUCKET
Private Bucket	Bucket name for private files	Yes	SETGET_STORAGE_PRIVATE_BUCKET
Region	S3 region (required for AWS S3, optional for MinIO)	No	SETGET_STORAGE_REGION
Use SSL	Use HTTPS for storage connections	No	SETGET_STORAGE_USE_SSL
Path Style	Use path-style URLs (required for MinIO)	No	SETGET_STORAGE_PATH_STYLE

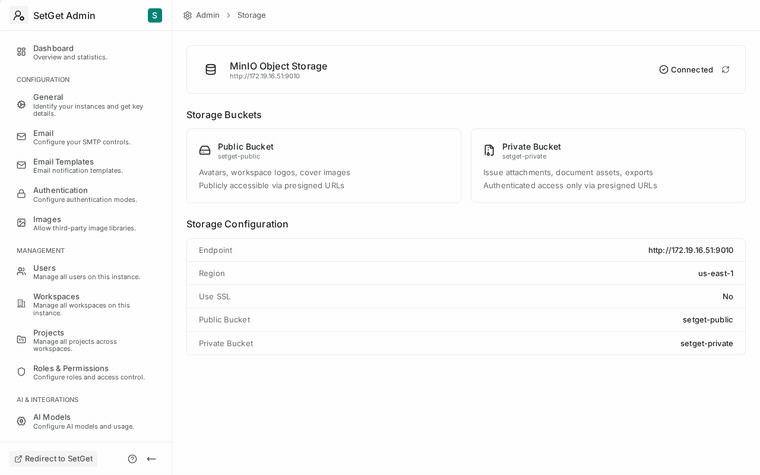

Step-by-step setup

Using MinIO (recommended for self-hosted)

1. Install and start MinIO on your server.
2. Create the required buckets:

# Install MinIO client
mc alias set setget http://your-minio-host:9010 ACCESS_KEY SECRET_KEY

# Create buckets
mc mb setget/setget-public
mc mb setget/setget-private

# Set public bucket policy (read-only for anonymous users)
mc anonymous set download setget/setget-public

3. In the Admin Panel, enter the configuration:

Field	Value
Storage Endpoint	http://your-minio-host:9010
Access Key	Your MinIO access key
Secret Key	Your MinIO secret key
Public Bucket	setget-public
Private Bucket	setget-private
Region	us-east-1 (default for MinIO)
Use SSL	No (or Yes if MinIO is behind a TLS proxy)
Path Style	Yes

4. Click Test Connection to verify.
5. Click Save to persist.

Using AWS S3

1. Create an S3 bucket for public assets and another for private files in the AWS Console.
2. Create an IAM user with programmatic access and attach a policy granting access to both buckets.
3. Configure the public bucket with a public-read bucket policy.
4. In the Admin Panel:

Field	Value
Storage Endpoint	https://s3.{region}.amazonaws.com
Access Key	IAM access key ID
Secret Key	IAM secret access key
Public Bucket	Your public bucket name
Private Bucket	Your private bucket name
Region	Your AWS region (e.g., eu-west-1)
Use SSL	Yes
Path Style	No

Using other S3-compatible providers

SetGet works with any S3-compatible storage provider, including:

Provider	Endpoint Format
DigitalOcean Spaces	https://{region}.digitaloceanspaces.com
Backblaze B2	https://s3.{region}.backblazeb2.com
Wasabi	https://s3.{region}.wasabisys.com
Cloudflare R2	https://{account_id}.r2.cloudflarestorage.com

TIP

When using a provider other than MinIO, set Path Style to No (virtual-hosted style) unless the provider's documentation specifically requires path-style URLs.

Test connection

The Test Connection button performs the following checks:

Check	What it verifies
Endpoint reachable	The storage endpoint responds to requests
Credentials valid	The access key and secret key authenticate successfully
Public bucket exists	The public bucket is accessible
Private bucket exists	The private bucket is accessible
Write test	A small test object can be written and read back
Delete test	The test object can be deleted

If any check fails, the error message indicates which step failed and the underlying error (connection refused, access denied, bucket not found, etc.).

Storage usage monitoring

The Storage page includes a usage dashboard showing:

Metric	Description
Total storage used	Combined size of all objects across both buckets
Public bucket usage	Size and object count in the public bucket
Private bucket usage	Size and object count in the private bucket
Upload count (30 days)	Number of files uploaded in the last 30 days
Download count (30 days)	Number of file downloads in the last 30 days
Largest files	Top 10 largest objects by size
Storage by workspace	Breakdown of storage usage per workspace

Setting storage limits

Setting	Description	Default
Max file size	Maximum size for a single upload	100 MB
Per-workspace storage limit	Maximum total storage per workspace (0 = unlimited)	0
Instance storage limit	Maximum total storage across the instance	Unlimited
Allowed file types	Restrict uploads to specific MIME types (empty = all)	Empty

WARNING

Changing the max file size does not affect files already uploaded. Existing files that exceed the new limit remain accessible but cannot be re-uploaded.

CDN configuration

For improved performance, you can place a CDN in front of the public storage bucket.

Field	Description	Required
CDN URL	Base URL of the CDN (e.g., https://cdn.example.com)	No
CDN for public bucket only	Only rewrite public bucket URLs to use CDN	Yes (default)

When a CDN URL is configured, SetGet rewrites public asset URLs to point to the CDN instead of the direct storage endpoint. This improves load times for profile images, workspace logos, and other public assets.

CDN setup guidelines

1. Configure your CDN origin to point to the public bucket endpoint.
2. Set appropriate cache headers (e.g., Cache-Control: public, max-age=31536000 for immutable assets).
3. Enable CORS if the CDN domain differs from your SetGet instance domain.
4. Enter the CDN URL in the Admin Panel and save.

TIP

Popular CDN options include Cloudflare, AWS CloudFront, Fastly, and Bunny CDN. Most can be configured in minutes to proxy an S3-compatible bucket.

Presigned URL configuration

Setting	Description	Default
Upload URL expiry	How long presigned upload URLs remain valid	30 minutes
Download URL expiry	How long presigned download URLs remain valid	60 minutes

TIP

Keep presigned URL expiry times short to reduce the window for unauthorized access. 30 minutes for uploads and 60 minutes for downloads is sufficient for most use cases.

Environment variable reference

All storage settings can be configured via environment variables. Environment variables take precedence over Admin Panel values.

export SETGET_STORAGE_ENDPOINT="http://172.19.16.51:9010"
export SETGET_STORAGE_ACCESS_KEY="your-access-key"
export SETGET_STORAGE_SECRET_KEY="your-secret-key"
export SETGET_STORAGE_PUBLIC_BUCKET="setget-public"
export SETGET_STORAGE_PRIVATE_BUCKET="setget-private"
export SETGET_STORAGE_REGION="us-east-1"
export SETGET_STORAGE_USE_SSL="false"
export SETGET_STORAGE_PATH_STYLE="true"

WARNING

Never commit storage credentials to source control. Use environment variables, a secrets manager, or a .env file excluded from version control.

Troubleshooting

Problem	Cause	Solution
Test connection fails with "connection refused"	Endpoint unreachable	Verify MinIO/S3 is running and the endpoint URL is correct
"Access denied" error	Wrong credentials or insufficient permissions	Check access key, secret key, and IAM/MinIO policy
"Bucket not found"	Bucket does not exist	Create the bucket using mc mb or the storage provider's console
Uploads fail silently	CORS not configured on storage	Add CORS rules allowing PUT/POST from your SetGet domain
Images not loading	Public bucket not set to public-read	Run mc anonymous set download bucket-name for MinIO
Large uploads timeout	Network or proxy limit	Increase proxy timeout and body size limits (e.g., nginx client_max_body_size)

CORS configuration for storage

For the two-phase upload to work, the storage backend must allow cross-origin requests from your SetGet domain. Configure CORS on your MinIO or S3 bucket:

MinIO CORS

Create a cors.json file:

{
  "CORSRules": [
    {
      "AllowedOrigins": ["https://your-setget-domain.com"],
      "AllowedMethods": ["GET", "PUT", "POST", "DELETE", "HEAD"],
      "AllowedHeaders": ["*"],
      "ExposeHeaders": ["ETag"],
      "MaxAgeSeconds": 3600
    }
  ]
}

Apply it using the MinIO client:

mc cors set setget/setget-public cors.json
mc cors set setget/setget-private cors.json

AWS S3 CORS

In the AWS Console, navigate to your bucket, go to Permissions > CORS Configuration, and add the equivalent JSON policy.

Backup and disaster recovery

Storage backups are critical for data protection. SetGet does not manage storage backups directly — configure them at the MinIO or S3 provider level.

Strategy	Tool	Description
Mirror	mc mirror	Replicate buckets to a secondary MinIO instance
Versioning	S3 versioning	Keep previous versions of every object
Lifecycle rules	S3 lifecycle policies	Automatically archive or delete old objects
Snapshot	Volume snapshot	Snapshot the MinIO data volume at the OS level

TIP

Enable bucket versioning to protect against accidental deletions. Combined with lifecycle rules to expire old versions after 30 days, this provides a safety net without unlimited storage growth.
