Email and SMTP Configuration

SetGet uses SMTP to send transactional emails — workspace invitations, password resets, magic link codes, and notification digests. A working SMTP configuration is essential for most user-facing flows.

Navigate to Admin Panel > Email / SMTP or go directly to /backoffice/settings/email.

Why SMTP matters

Without a configured SMTP server, the following features will not function:

Feature	Impact
Workspace invitations	Users cannot be invited by email
Password reset	Users cannot recover forgotten passwords
Magic link authentication	Passwordless login is unavailable
Notification digests	Periodic email summaries are not sent
Welcome emails	New users do not receive onboarding messages

WARNING

Configure SMTP before inviting users to your instance. Without it, invitation emails will silently fail and users will have no way to join.

SMTP settings reference

Setting	Description	Required	Environment Variable
SMTP Host	Mail server hostname or IP address	Yes	SETGET_SMTP_HOST
SMTP Port	Mail server port	Yes	SETGET_SMTP_PORT
Username	SMTP authentication username	Yes	SETGET_SMTP_USERNAME
Password	SMTP authentication password	Yes	SETGET_SMTP_PASSWORD
From Email	Sender email address	Yes	SETGET_SMTP_FROM_EMAIL
From Name	Sender display name	No	SETGET_SMTP_FROM_NAME
Use TLS	Enable TLS/SSL encryption	Yes	—
TLS Mode	implicit (port 465) or starttls (port 587)	Yes	—

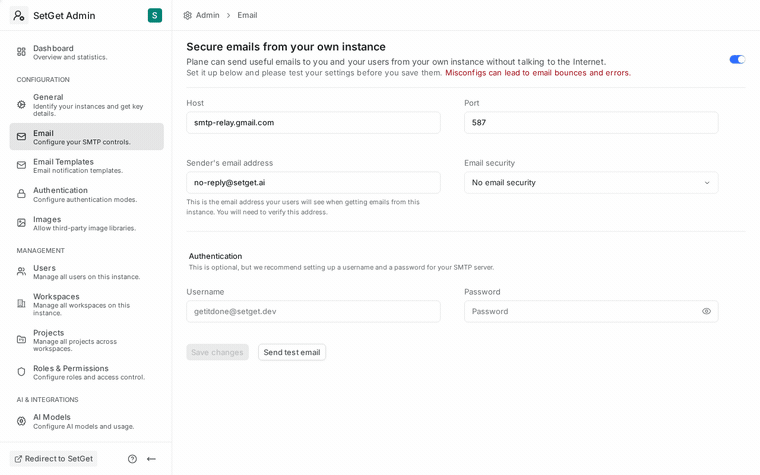

Configuring SMTP step by step

1. Open Admin Panel > Email / SMTP.
2. Enter your SMTP server hostname in the SMTP Host field.
3. Enter the port number in the SMTP Port field.
4. Select the appropriate TLS Mode:
   • Implicit TLS for port 465 — connection is encrypted from the start.
   • STARTTLS for port 587 — connection upgrades to TLS after initial handshake.
5. Enter your Username and Password.
6. Set the From Email address (e.g., noreply@example.com).
7. Optionally set the From Name (e.g., SetGet Notifications).
8. Click Send Test Email to verify the configuration.
9. Check your inbox for the test email.
10. Click Save to persist the settings.

TLS and port selection

Choosing the right port and TLS mode is the most common source of SMTP configuration errors.

Port	TLS Mode	Description	Recommended
25	None or STARTTLS	Legacy SMTP relay, often blocked by ISPs	No
465	Implicit TLS	Direct encrypted connection	Yes
587	STARTTLS	Starts unencrypted, upgrades to TLS	Yes
2525	STARTTLS	Alternative port used by some providers	Sometimes

TIP

When in doubt, try port 465 with implicit TLS first. It is the most reliable option and avoids STARTTLS negotiation issues.

Test email

After entering your SMTP configuration, always send a test email before saving:

1. Click Send Test Email.
2. The test email is sent to the currently logged-in admin's email address.
3. If successful, a green confirmation appears: "Test email sent successfully."
4. If it fails, an error message describes the issue (connection refused, authentication failed, TLS handshake error, etc.).

Common test email failures:

Error	Cause	Solution
connection refused	Wrong host or port	Verify SMTP host and port
authentication failed	Wrong username or password	Check credentials; some providers require app-specific passwords
TLS handshake failed	Wrong TLS mode for the port	Use implicit TLS for 465, STARTTLS for 587
timeout	Firewall blocking outbound SMTP	Open the SMTP port in your firewall rules
certificate error	Self-signed or expired certificate	Update the mail server certificate or configure CA trust

Provider-specific guides

Gmail

Google's SMTP servers work well for small deployments or testing.

Setting	Value
SMTP Host	smtp.gmail.com
SMTP Port	465
TLS Mode	Implicit TLS
Username	Your Gmail address
Password	App-specific password (not your Gmail password)
From Email	Your Gmail address

WARNING

Gmail requires an App Password when 2-factor authentication is enabled (which it should be). Generate one at myaccount.google.com/apppasswords. Gmail has a sending limit of approximately 500 emails per day for personal accounts.

SendGrid

SendGrid is a dedicated transactional email service suitable for production deployments.

Setting	Value
SMTP Host	smtp.sendgrid.net
SMTP Port	465
TLS Mode	Implicit TLS
Username	apikey (literal string)
Password	Your SendGrid API key
From Email	A verified sender address in SendGrid

TIP

Set up domain authentication (SPF, DKIM) in SendGrid to improve email deliverability and avoid spam filters.

Amazon SES

Amazon Simple Email Service is a cost-effective option for high-volume deployments.

Setting	Value
SMTP Host	email-smtp.{region}.amazonaws.com (e.g., email-smtp.eu-west-1.amazonaws.com)
SMTP Port	465
TLS Mode	Implicit TLS
Username	SES SMTP username (not your AWS access key)
Password	SES SMTP password (not your AWS secret key)
From Email	A verified email or domain in SES

WARNING

SES starts in sandbox mode, where you can only send to verified email addresses. Request production access from the AWS Console before deploying to users.

Custom / self-hosted SMTP

For self-hosted mail servers (Postfix, Haraka, Mail-in-a-Box, etc.):

Setting	Value
SMTP Host	Your mail server hostname or IP
SMTP Port	465 or 587
TLS Mode	Match your server's configuration
Username	As configured on your mail server
Password	As configured on your mail server
From Email	Any address your server is authorized to send from

Ensure your mail server has valid TLS certificates, proper SPF records, and DKIM signing configured to avoid deliverability issues.

Email deliverability tips

To maximize the chance that emails reach user inboxes:

1. Set up SPF records — Add a DNS TXT record authorizing your SMTP server to send on behalf of your domain.
2. Configure DKIM signing — Most email providers and mail servers support DKIM. This cryptographically signs outgoing emails.
3. Set up DMARC — A DMARC policy tells receiving servers how to handle emails that fail SPF or DKIM checks.
4. Use a dedicated sending domain — Avoid sending from a personal email address in production.
5. Monitor bounce rates — High bounce rates can damage your sender reputation.

Environment variable override

SMTP settings can be configured via environment variables instead of (or in addition to) the Admin Panel. Environment variables take precedence over Admin Panel values.

export SETGET_SMTP_HOST="smtp.example.com"
export SETGET_SMTP_PORT="465"
export SETGET_SMTP_USERNAME="noreply@example.com"
export SETGET_SMTP_PASSWORD="your-smtp-password"
export SETGET_SMTP_FROM_EMAIL="noreply@example.com"
export SETGET_SMTP_FROM_NAME="SetGet"

WARNING

Never commit SMTP credentials to source control. Use environment variables, secrets management, or a .env file excluded from version control.

Email queue and retry behavior

SetGet queues outgoing emails in Redis and processes them asynchronously. This provides resilience against temporary SMTP outages.

Setting	Description	Default
Queue size	Maximum number of emails in the queue	10,000
Retry attempts	Number of times to retry a failed send	3
Retry delay	Time between retry attempts	30 seconds (exponential backoff)
Dead letter threshold	After this many failures, move to dead letter queue	3

When an email fails all retry attempts, it is moved to the dead letter queue. Administrators can view and manually retry dead-letter emails from the SMTP settings page.

Monitoring email delivery

The SMTP settings page includes a delivery summary:

Metric	Description
Sent (24h)	Emails successfully sent in the last 24 hours
Failed (24h)	Emails that failed to send
Queued	Emails currently waiting to be sent
Dead letter	Emails that exhausted all retries
Average send time	Mean time from queue to SMTP handshake completion

Email types reference

SetGet sends the following email types through SMTP:

Email Type	Trigger	Template Customizable
Welcome	User registration	Yes
Workspace Invitation	Member invited	Yes
Password Reset	Reset request	Yes
Magic Link	Magic link request	Yes
Notification Digest	Scheduled delivery	Yes
Account Locked	Brute-force lockout	No
GDPR Export Ready	Data export completed	No
Test Email	Admin sends test	No

Troubleshooting SMTP

Problem	Diagnosis	Solution
Emails go to spam	Missing SPF/DKIM/DMARC	Set up DNS records for your sending domain
Emails delayed	Queue backlog	Check Redis connectivity and queue size
"Relay access denied"	Mail server rejects sender	Verify the From Email is authorized on your SMTP server
Intermittent failures	Network instability	Check firewall rules and DNS resolution for SMTP host
Rate limit exceeded	Provider sending limit reached	Reduce email volume or upgrade your SMTP plan
